1. Advantages:

(1) Save space and time.

(2) The machine has its own sterilization function.

(3) Eliminate troubles caused by weather and glue problems.

(4) The finished straw is high temperature resistant and degradable.

(5) The product loss rate is greatly reduced.

(6) The hardness of the finished product increases with the same gram of raw materials.

 (7) The whole machine adopts servo motors

 (8) Suitable for dual-purpose models with glue and no glue

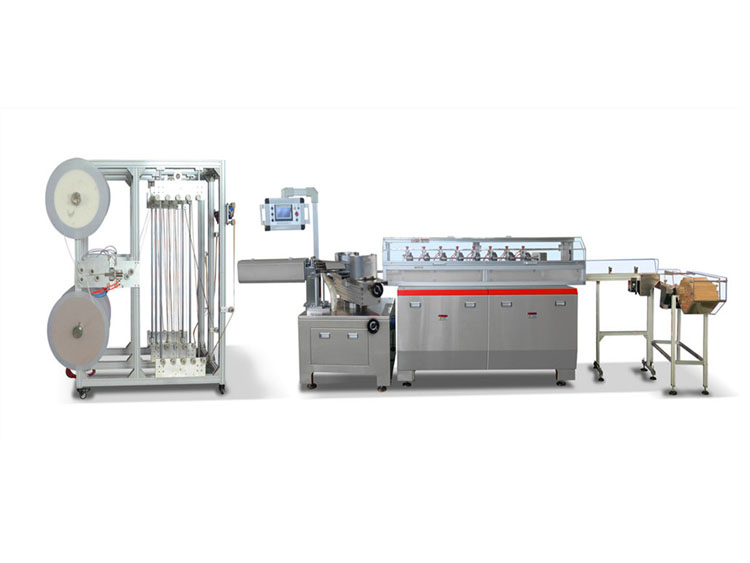

2. Technical parameters of paper straw machine

Raw Material：Pure wood pulp paper

Paper Layers：3-4 layers

Paper Thickness(from inside to outside)：120g/m²,120g/m²,60g/m²

Tube Thickness：0.3-2mm

Running Speed：40 - 100M/min

Tube Size：4.5-12mm

Cutting System：Full servo, 8 sets of tools

Cutting Length：70-1050mm

Power Source：380V 50Hz

Operation Person：1-2 people

Paper Roll Bracket：1600*1500*1900mm

Main Part：2400*1000*1400mm

Collection Part：2000*1300*1900mm

Weight：1400kg

3. Paper straw machine configuration:

Main Motor:co-trust(1.5kw)

Drive:co-trust

Touch Panel:siemens

Servo Motor:co-trust

Bearing:HRB

Electronic components:Omron

Pneumatic parts:Airtag

4. Finished product:

5. Supporting products
